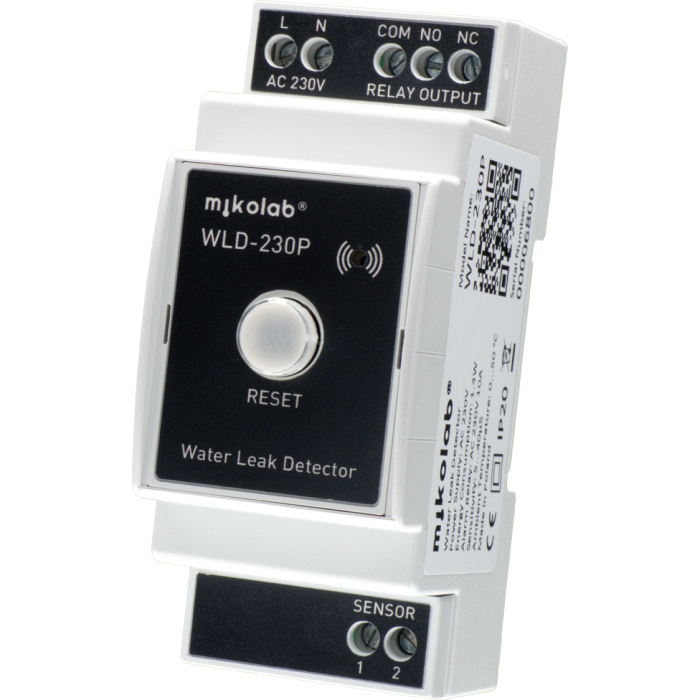

WLD-230P
Water Leak Detector
DESCRIPTION
DIMENSIONS
CONNECTION
CONFIGURATION
SPECIFICATION
| Power Supply | |
| Voltage | AC 230 V (100-240 V) |
| Power Consumption | 1,3 VA |
| Alarm Relay | |
| Contact | SPDT |
| Rated Voltage | AC 250 V |
| DC 30 V | |
| Rated Current | 10 A |
| Rated Load AC1 | 2500 VA |
| Rated Load AC15 | 500 VA |
| Motor Rating AC 230 V | 370 W |
| Min. Switching Load | 500 mW |
| Sound Alarm | |
| Frequency | 2400 Hz |
| Sound Level | 85 dB at 10 cm |
| LED Indicator | |
| Ready | continuous green |
| Water Leak Alarm | blinking red |
| Waiting for Reset | continuous red |
| Configuration Options | |
| Manual Reset | dipswitch 1 - On/Off |
| Sound Alarm | dipswitch 2 - On/Off |
| Sensitivity | dipswitch 4,5,6 - 5..40 uS |
| Housing | |
| Material | self-extinguishing PC/ABS |
| Protection IEC605529 | front panel IP40 |
| body with connectors IP20 | |
| Dimensions DIN43880 | 2 slots of 18 mm |
| Dimensions HxWxD | 91x36x62 mm |
| Weight | 117 g |
| Terminal Blocks | |
| Type | screw |
| Pluggable | no |
| Cable Size | 0,14 - 2,5 mm2 |
| Torque | 0,57 Nm |
| Mounting | |
| Distribution Boards | DIN43880 |
| Fixing | on TH35 rail (IEC60715) |
| Operation Ambient | |
| Temperature | 0 - 50°C |
| Relative Humidity | 10-90% (non condensing) |
